Mini-SOC Project

🎯 Project Objectives

Deploy a production-ready network IDS for real-time threat detection
Implement centralized log collection and analysis using industry-standard SIEM
Create custom dashboards for security monitoring and threat hunting
Gain hands-on experience with Blue Team tools and methodologies
Develop skills in alert tuning, rule management, and incident response
Build a foundation for advanced threat intelligence integration

🏗️ System Architecture

┌─────────────────────────────────────────────────────────┐
│                    Home Network                         │
│                  (10.0.0.0/24)                          │
│                                                         │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐               │
│  │ Laptop   │  │  Phone   │  │  IoT     │               │
│  │          │  │          │  │  Device  │               │
│  └────┬─────┘  └────┬─────┘  └────┬─────┘               │
│       │             │             │                     │
│       └─────────────┴─────────────┘                     │
│                     │                                   │
│              ┌──────▼──────┐                            │
│              │   Router    │                            │
│              │  10.0.0.1   │                            │
│              └──────┬──────┘                            │
│                     │                                   │
│              ┌──────▼──────────────────────┐            │
│              │  Raspberry Pi Zero 2 W      │            │
│              │  (Suricata IDS)             │            │
│              │  10.0.0.153                 │            │
│              │                             │            │
│              │  • Captures traffic         │            │
│              │  • Analyzes packets         │            │
│              │  • Generates EVE JSON logs  │            │
│              │  • Applies ET Open rules    │            │
│              └──────┬──────────────────────┘            │
│                     │                                   │
│                     │ rsyslog TCP 1514                  │
│                     │                                   │
│              ┌──────▼──────────────────────┐            │
│              │  Windows PC                 │            │
│              │  (Splunk Enterprise)        │            │
│              │  10.0.0.X                   │            │
│              │                             │            │
│              │  • Receives logs            │            │
│              │  • Indexes & parses data    │            │
│              │  • Dashboards & alerts      │            │
│              │  • Threat hunting queries   │            │
│              └─────────────────────────────┘            │
│                                                         │
└─────────────────────────────────────────────────────────┘

⚙️ Technical Specifications

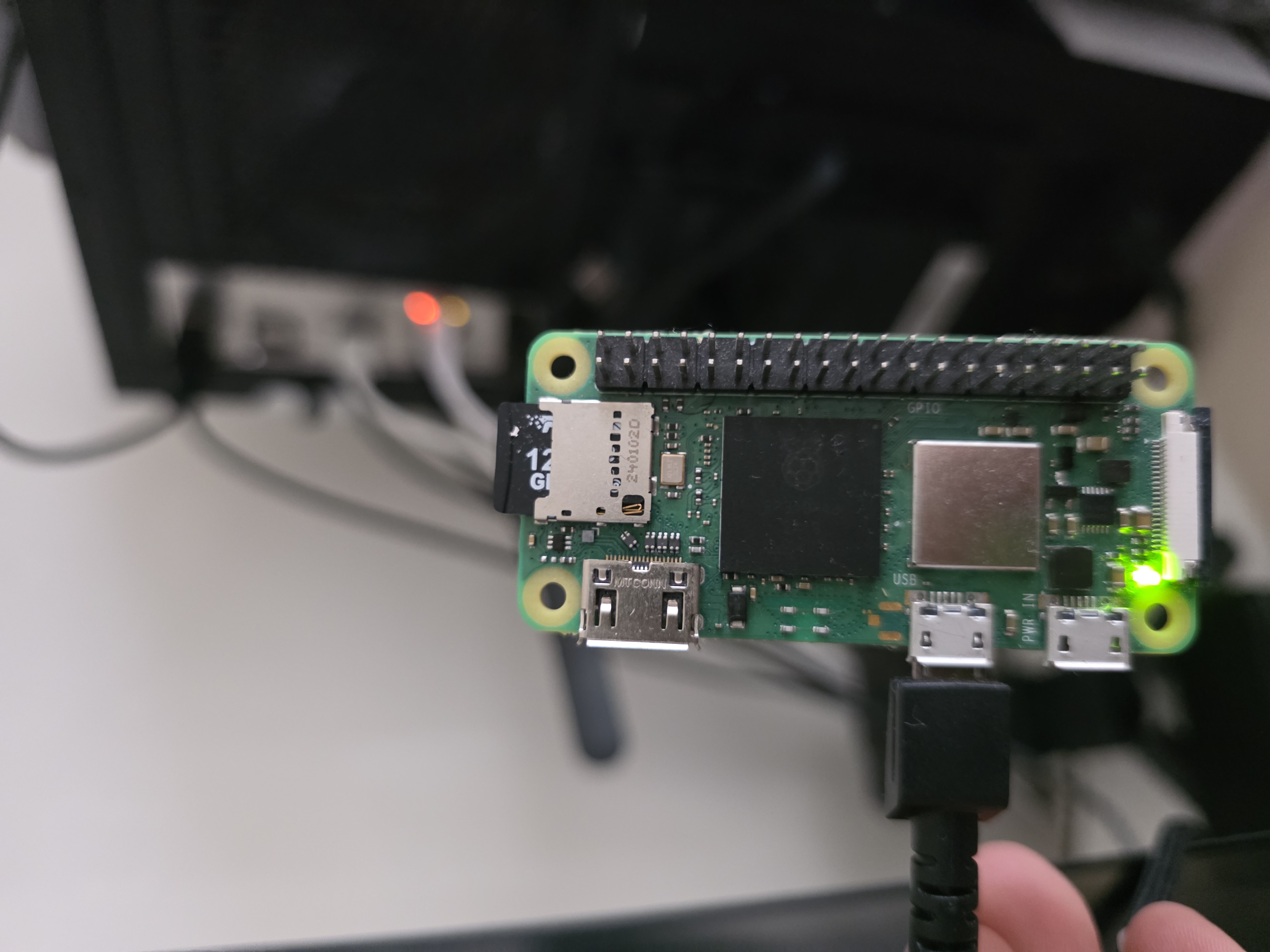

IDS Hardware Raspberry Pi Zero 2 W
MicroSD Card (32GB)
Power Supply (5V/2.5A)
Static IP: 10.0.0.153

IDS Software Raspberry Pi OS Lite
Suricata 6.x/7.x
rsyslog (TCP forwarding)
ET Open Ruleset

SIEM Platform Splunk Enterprise 9.x
Windows 10/11 Host
TCP Input: Port 1514
Custom Dashboards

Network Config Mirror Port / SPAN
Gateway: 10.0.0.1
DNS: Cloudflare 1.1.1.1
SSH Remote Access

🔧 Implementation Process

1Raspberry Pi Initial Setup

Prepare the Raspberry Pi with SSH access and static networking:

# Update system packages
sudo apt update && sudo apt full-upgrade -y

# Install essential tools
sudo apt install -y vim htop net-tools tcpdump

# Configure static IP (using NetworkManager)
sudo nmtui
# Set: IP 10.0.0.153/24, Gateway 10.0.0.1, DNS 1.1.1.1

# Verify network configuration
ip addr show
ping -c 4 8.8.8.8

2Install and Configure Suricata

Deploy Suricata IDS for network traffic analysis:

# Install Suricata
sudo apt install -y software-properties-common
sudo add-apt-repository ppa:oisf/suricata-stable
sudo apt update
sudo apt install -y suricata

# Verify installation
suricata --build-info

# Update Emerging Threats Open ruleset
sudo suricata-update
sudo suricata-update list-sources
sudo suricata-update enable-source et/open
sudo suricata-update

3Configure Suricata EVE JSON Logging

Edit /etc/suricata/suricata.yaml to enable comprehensive logging:

# Key configuration sections:

# Network interface (adjust to your interface)
af-packet:
  - interface: eth0
    threads: auto
    cluster-type: cluster_flow

# EVE JSON output configuration
outputs:
  - eve-log:
      enabled: yes
      filetype: regular
      filename: eve.json
      types:
        - alert:
            tagged-packets: yes
        - http:
            extended: yes
        - dns:
            query: yes
            answer: yes
        - tls:
            extended: yes
        - files:
            force-magic: yes
        - ssh
        - flow
        - netflow

# Restart Suricata
sudo systemctl restart suricata
sudo systemctl status suricata

# Monitor logs
sudo tail -f /var/log/suricata/eve.json

4Configure rsyslog for Log Forwarding

Forward Suricata logs to Splunk via TCP:

# Create rsyslog configuration file
sudo nano /etc/rsyslog.d/30-suricata.conf

# Add the following content:
# Forward Suricata EVE JSON logs to Splunk
module(load="imfile")

input(type="imfile"
      File="/var/log/suricata/eve.json"
      Tag="suricata"
      Severity="info"
      Facility="local7")

# Forward to Splunk (replace with your Splunk IP)
*.* @@10.0.0.X:1514

# Restart rsyslog
sudo systemctl restart rsyslog
sudo systemctl status rsyslog

# Test connectivity
nc -zv 10.0.0.X 1514

5Splunk Enterprise Configuration

Set up Splunk to receive and parse Suricata logs:

# 1. Install Splunk Enterprise (Windows)
# Download from: https://www.splunk.com/

# 2. Create TCP Data Input
Settings → Data Inputs → TCP → New Local TCP
Port: 1514
Source Type: _json (or create custom sourcetype)
Index: suricata (create new index)

# 3. Verify data ingestion
# In Splunk Search:
index=suricata | head 10

# 4. Parse JSON fields
index=suricata | spath

# 5. Search by event type
index=suricata event_type=alert
index=suricata event_type=dns
index=suricata event_type=http
index=suricata event_type=tls

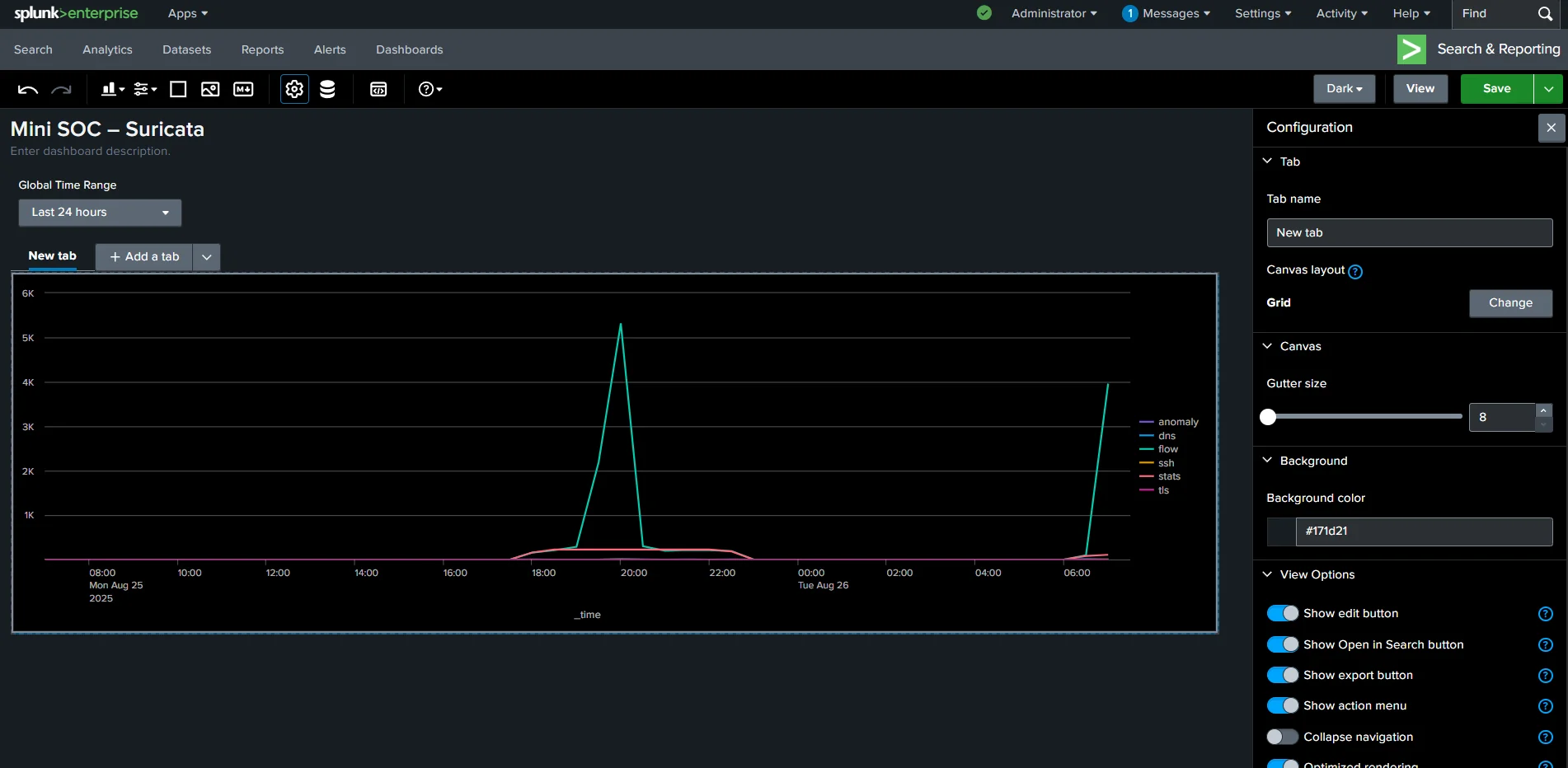

6Create Splunk Dashboards

Build custom dashboards for security monitoring:

# Dashboard 1: Event Type Distribution
index=suricata
| stats count by event_type
| sort -count

# Dashboard 2: Top Alerts (Last 24h)
index=suricata event_type=alert
| stats count by alert.signature
| sort -count
| head 20

# Dashboard 3: DNS Query Analysis
index=suricata event_type=dns
| stats count by dns.query
| sort -count

# Dashboard 4: HTTP Traffic Overview
index=suricata event_type=http
| stats count by http.hostname, http.http_method
| sort -count

# Dashboard 5: Suspicious IPs
index=suricata event_type=alert
| stats count by src_ip, dest_ip, alert.severity
| where alert.severity=1 OR alert.severity=2

⚠️ Privacy Considerations

When sharing screenshots or logs publicly, always mask sensitive information including: IP addresses (both internal and external), domain names, hostnames, and any personally identifiable information (PII). Use tools like image editors or Splunk's built-in anonymization features.

🔍 Threat Detection Capabilities

The Mini-SOC provides real-time detection for various security events:

Network Protocol Analysis

DNS: Query logging, tunneling detection, DGA identification
HTTP/HTTPS: Suspicious user agents, C2 communication patterns
TLS/SSL: Certificate validation, cipher suite analysis
SSH: Brute force attempts, unusual authentication patterns
TCP/UDP: Port scanning, DDoS indicators, unusual flows

Threat Categories Detected

Malware communication (C2 callbacks, beaconing)
Exploit attempts and vulnerability scanning
Data exfiltration patterns
Lateral movement indicators
Suspicious IoT device behavior
Known malicious IPs and domains (ET Open rules)

📊 Results and Capabilities

✅ Current Capabilities

✅ Real-time network traffic monitoring across all devices
✅ Automated threat detection using 30,000+ ET Open rules
✅ Centralized log collection with 500MB+ daily ingestion
✅ Custom dashboards for traffic analysis by protocol
✅ Alert visualization with severity classification
✅ DNS query logging and analysis for IoT devices
✅ Suspicious flow detection and anomaly identification
✅ Full-packet capture capability for forensic analysis

Key Metrics Tracked

Traffic Volume Daily Events: 10,000+
Protocols: 15+ types
Devices Monitored: All network endpoints

Alert Statistics Rules Active: 30,000+
False Positives: Tuned
Severity Levels: 1-3

Performance Latency: < 100ms
Packet Loss: < 0.1%
CPU Usage: 30-50%

Storage Log Retention: 30 days
Index Size: ~15GB
Compression: Enabled

📸 Project Screenshots

Visual documentation of the Mini-SOC implementation (IPs masked for privacy):

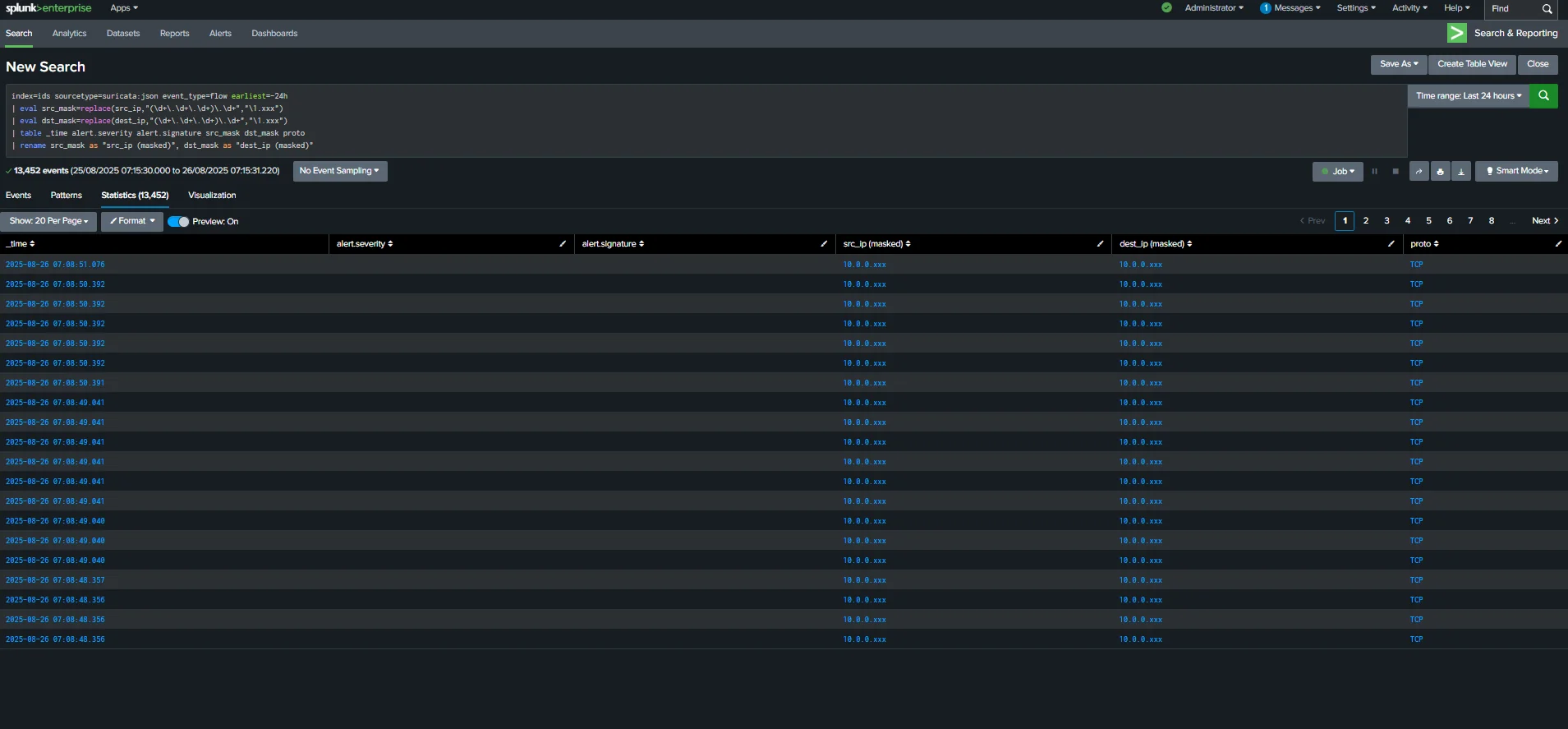

Suricata installation and initial configuration
